2800 PSI Vertical Aluminum Head Power Pressure Washer Water Pump, HIM-308653052 FH, 2.3 GPM, 7/8" Shaft with Keyway & Chemical Hose

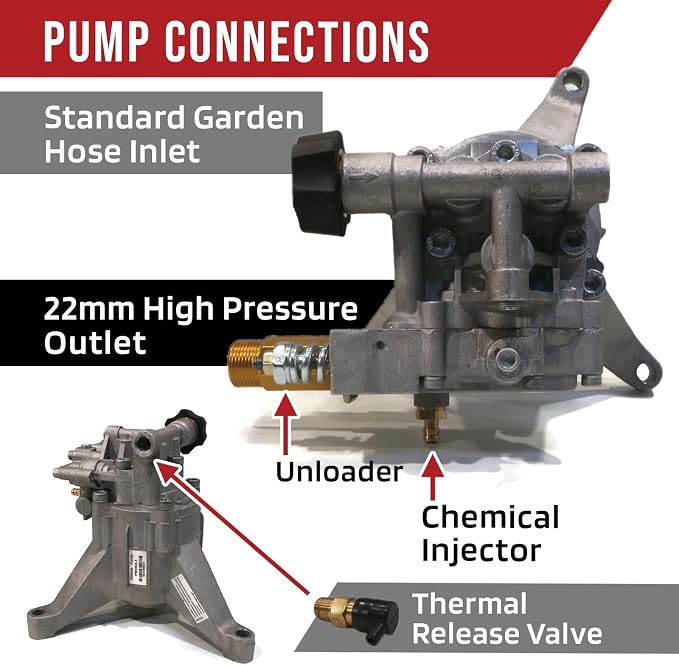

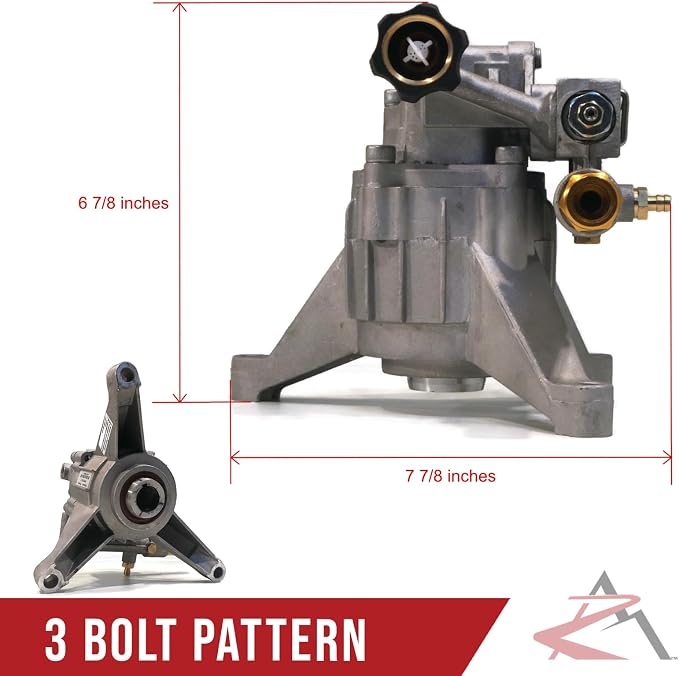

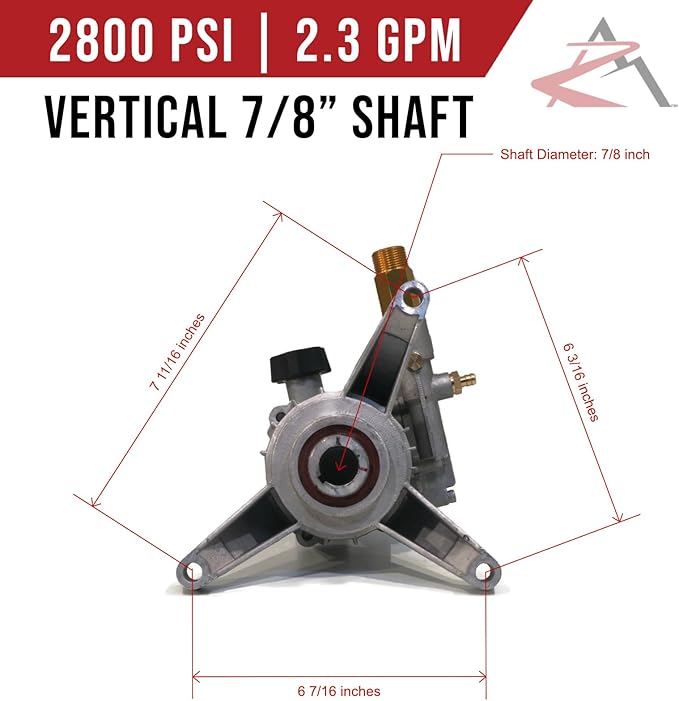

Specs - Max Pressure: 2800 PSI. Max Flow: 2.3 GPM. Max Pump Speed: 3400 RPM. Shaft Size: 7/8". 3-Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Max Water Temp: 140° F. Inlet Connection: Standard Garden Hose. Outlet Connection: 22mm Male. Refer to images 2 and 3 for more information

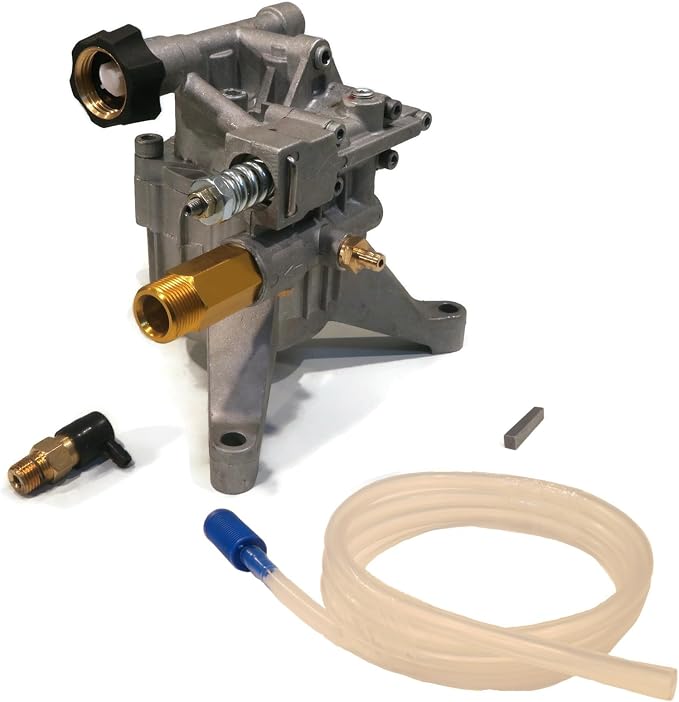

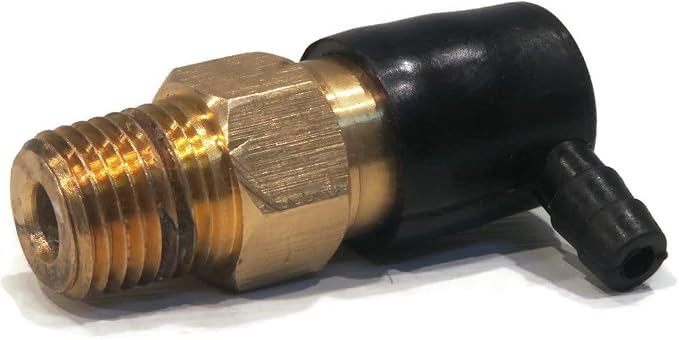

Includes - (1) Vertical Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube, (1) Hose with Filter, & (1) Keyway; comes as shown in the first image
Depending on engine configuration, longer bolts and spacers (washers) may be needed to mount the pump properly, especially if the engine has a longer shaft or the pump legs hit the frame or engine. Failure to use spacers when needed can cause pump legs to break from stress. Spacers and longer bolts are not included but can be purchased at a hardware store. Common bolt sizes: (2) 5/16"-18 x 2-1/2", and (1) 5/16"-18 x 3-1/2"

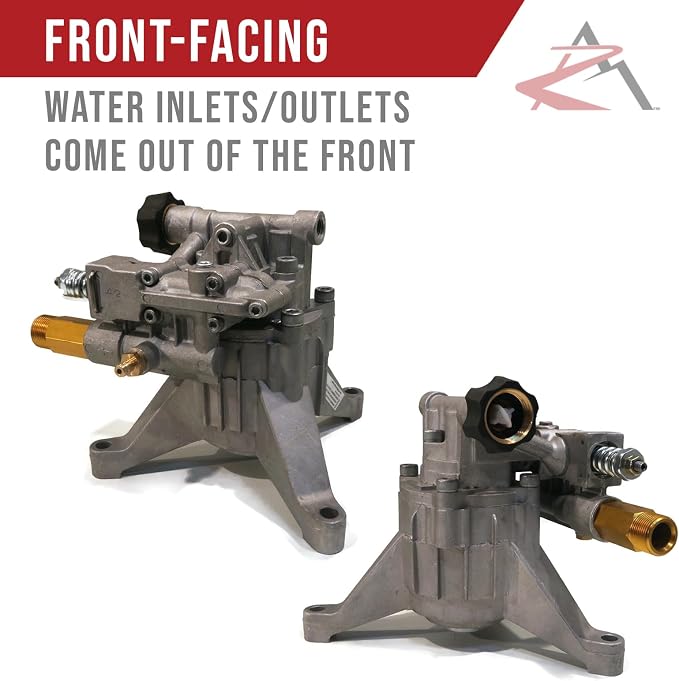

This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 5.5HP to handle PSI. Pump head can be flipped. Some models may require removing the pump to change engine oil. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Color : Gray
Material : Aluminum
Style : Multiple Materials
Power Source : Mechanical
Item Weight : 6.94 Pounds
Maximum Flow Rate : 2.3 Gallons Per Minute
Global Trade Identification Number : 00197111511713
