Pressure Washer Pump & Adapter for Annovi Reverberi RMW2.2G24-EZ-SX RMW22G24EZSX

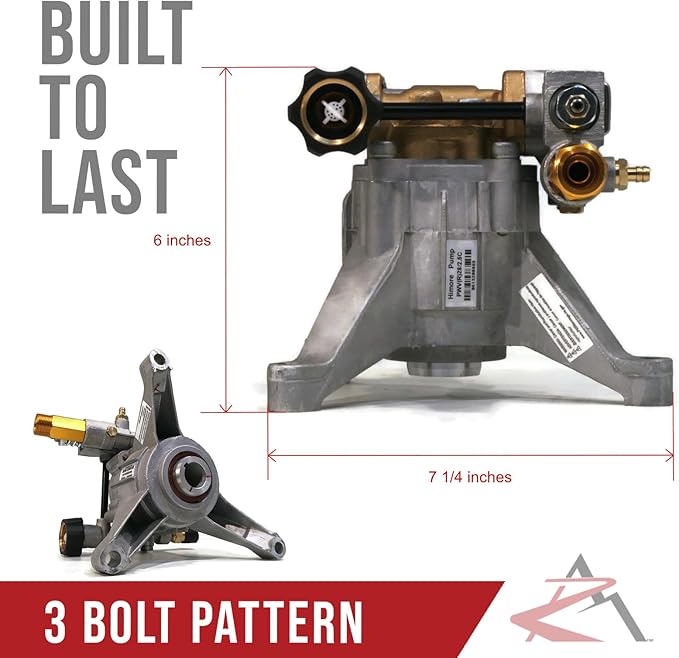

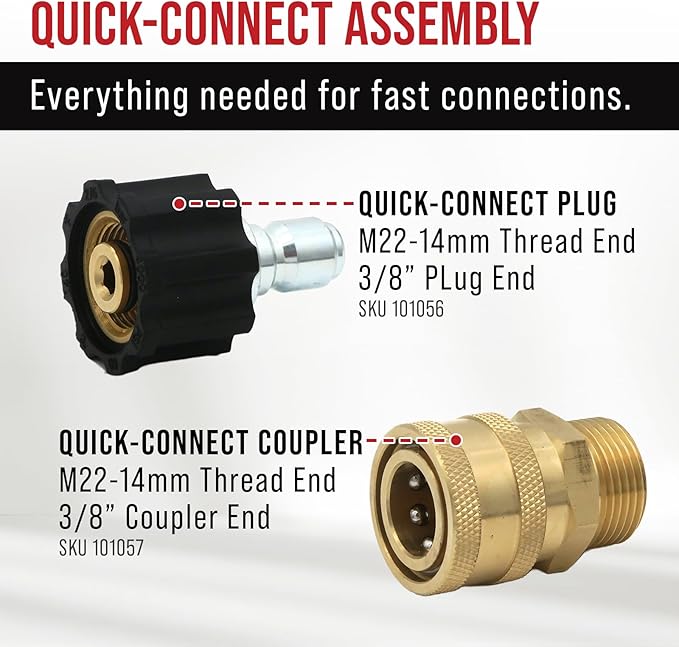

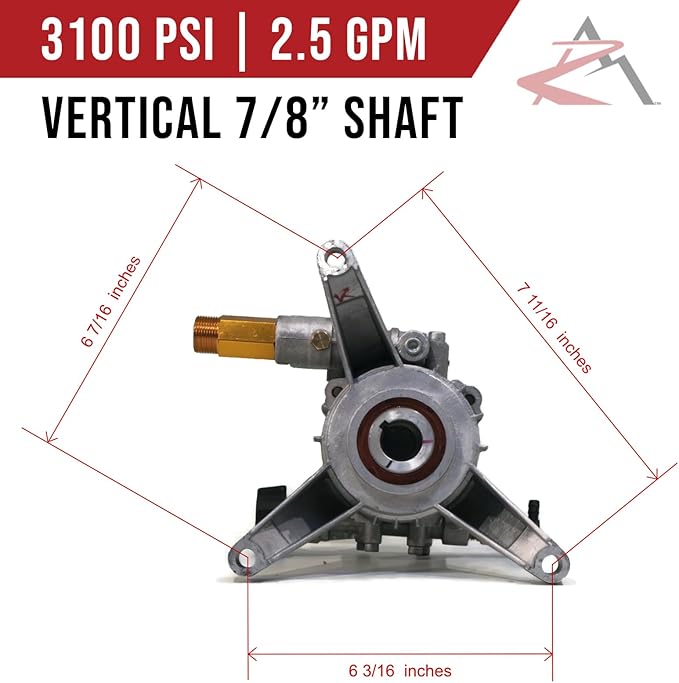

Specs - Pump - Max PSI: 3100. Max Flow: 2.5 GPM. Max RPM: 3400. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Max Temp: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Plug - Female Pipe Thread End: M22. Plug End: 3/8". Max PSI: 4000. Max Temp: 140° F. Coupler - Specs - Male Pipe Thread End: M22. Female Coupler End: 3/8". Max PSI: 4000. Refer to images for more information

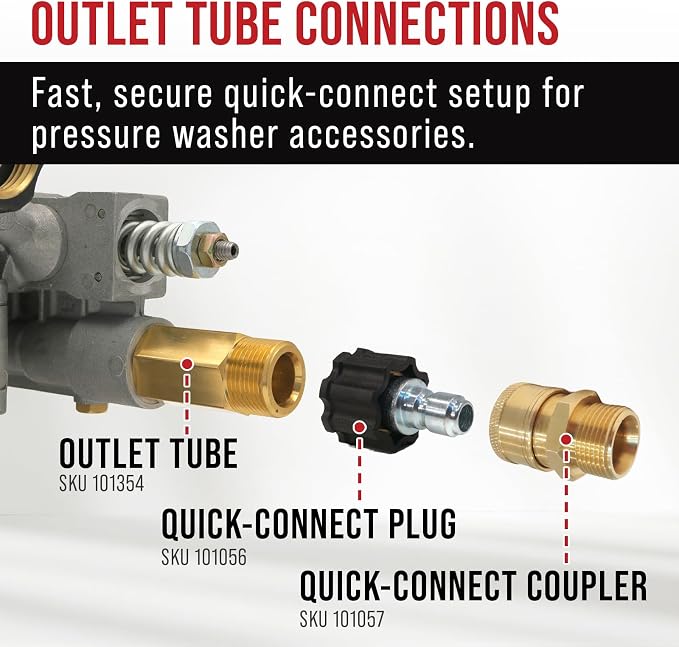

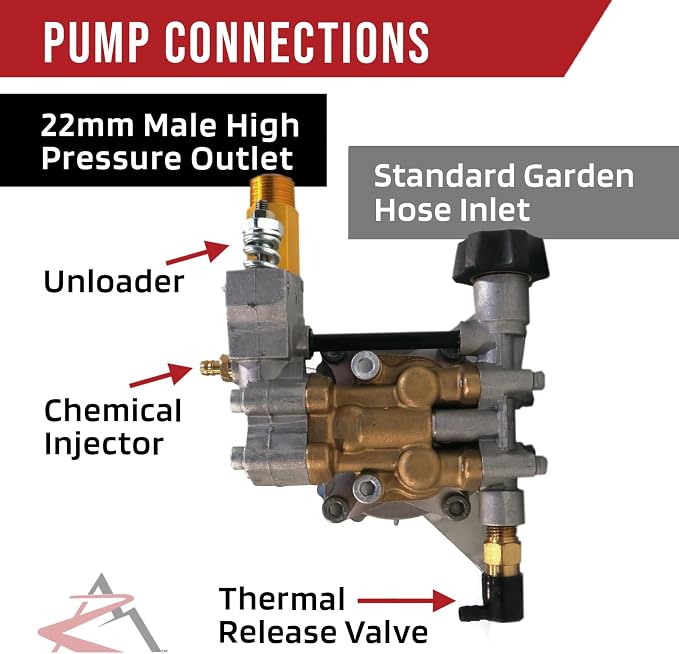

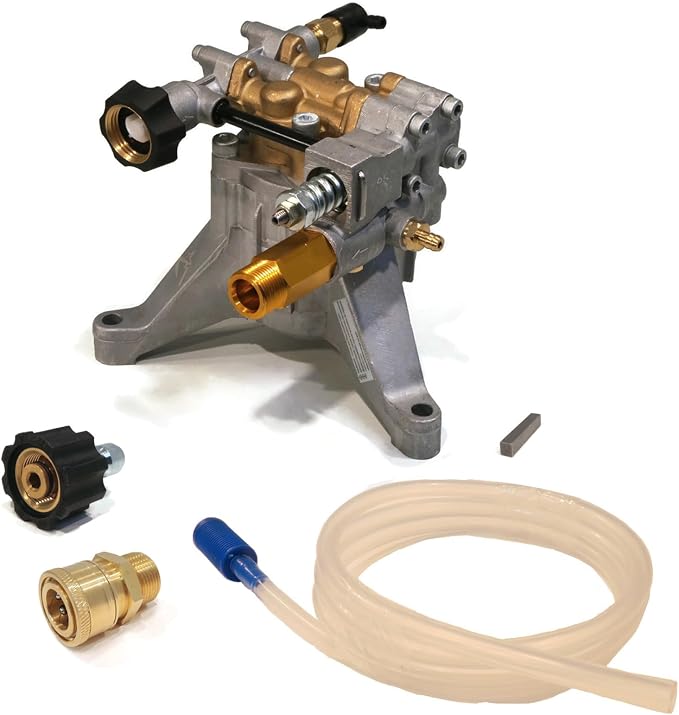

Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube, Hose, Keyway, (1) Quick-Connect Plug, (1) Quick-Connect Coupler; comes as shown in the first image
This pump may require 1/2" spacers when installed, depending on motor configuration. Spacers are used in the case that the pump arm(s) hits the engine or can't reach the under side of frame such as the engine has a longer shaft. If spacers aren't used when installing, the pump legs will break from stress (spacers & longer bolts are NOT included). Brass outlet tube MUST be removed if quick-connect is being used

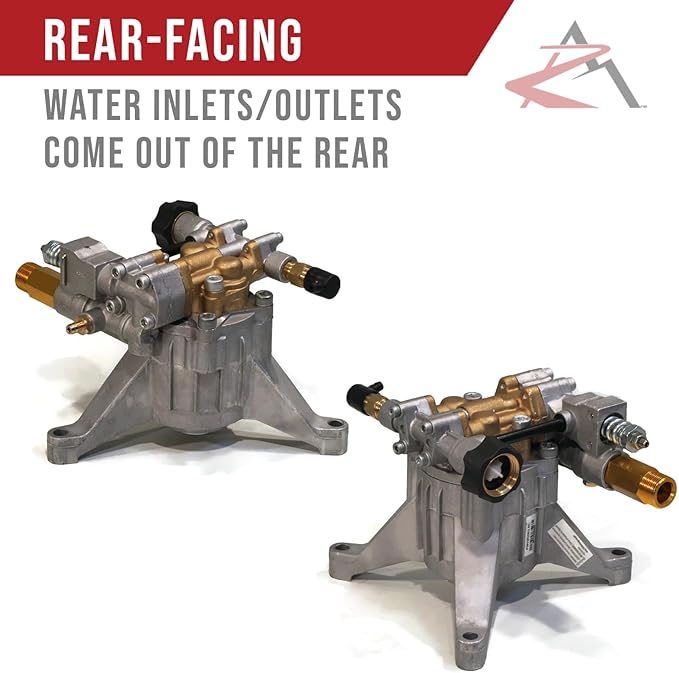

This pump mounts vertical and is a rear facing (water inlets/outlets come out of the rear of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-installed. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Gray
Item Weight : 8 Pounds
Maximum Flow Rate : 2.5 Gallons Per Minute
Global Trade Identification Number : 00197111246691
