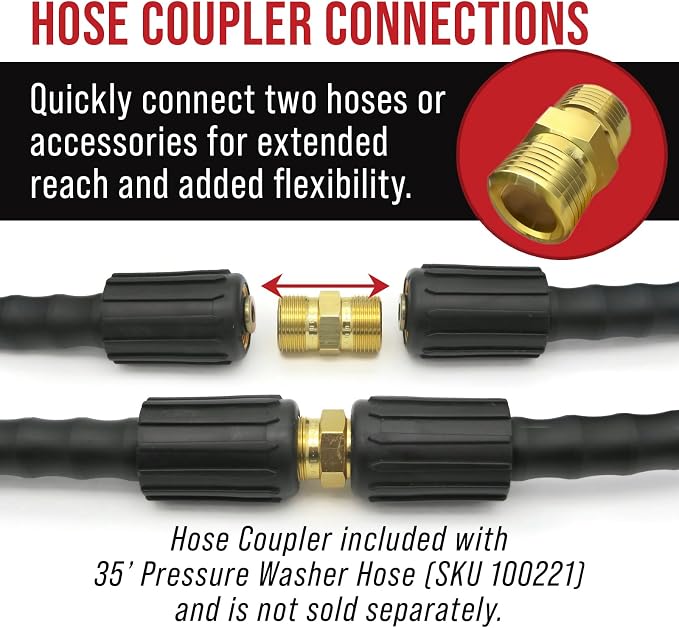

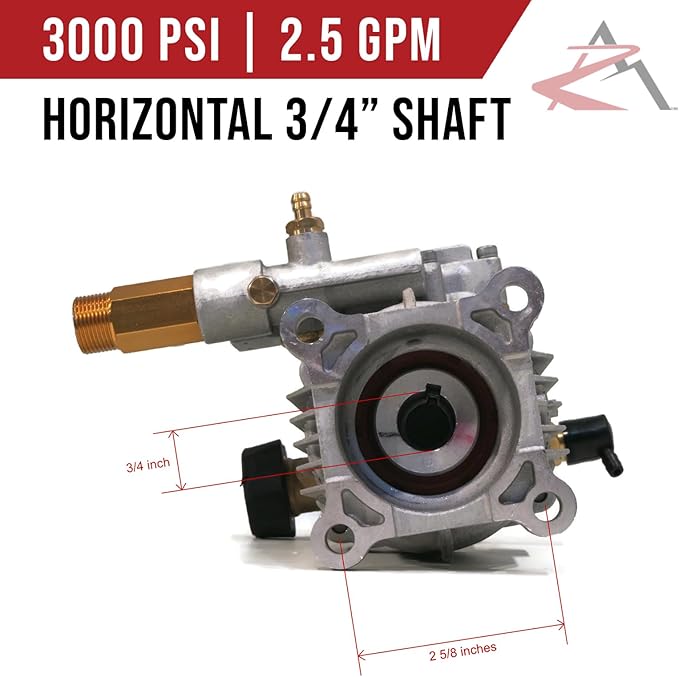

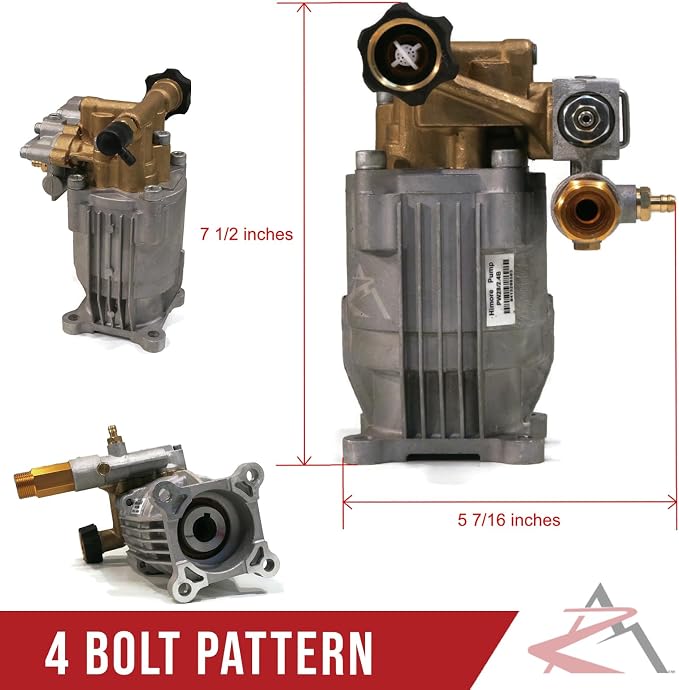

Specs - Pump - Max PSI: 3000. Max GPM: 2.5. Max RPM: 3450. Shaft: 3/4". 4 Bolt Pattern: 2 5/8" Center to Center between Outer Holes. Max Temp: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Spray Gun - Inlet: M22 male. Outlet: M22 female. Wand - Male Pipe Thread Inlet: M22. Female Quick-Connect Outlet: 1/4". Hose - Length: 35'. End Types: M22 Female, Threaded. Diameter: 1/4" (6mm). Refer to images for more information.

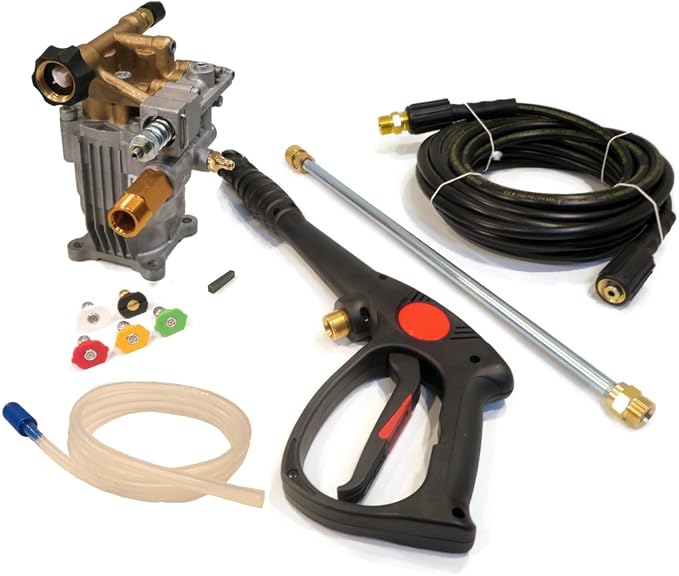

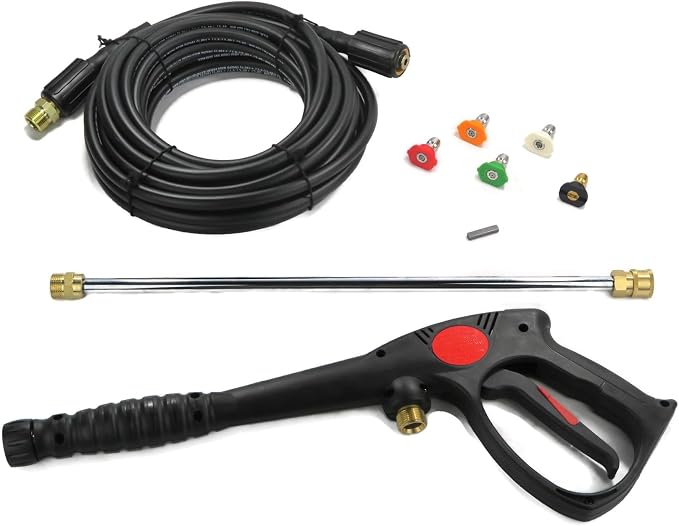

Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, & Outlet Tube, (1) Keyway, (1) Chemical Hose, (1) 35' Pressure Washer Hose, (1) Spray Gun, (1) 18" Extension Wand, (5) Spray Nozzle Tips; comes as shown in the first image

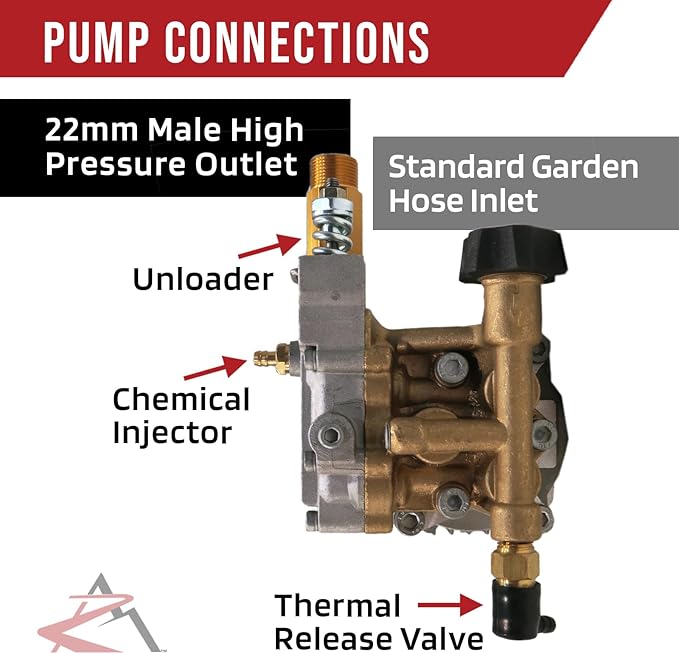

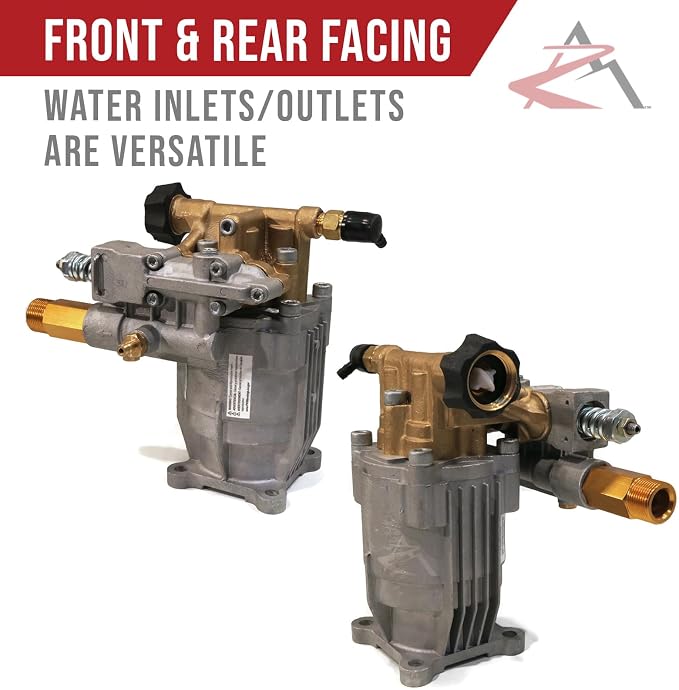

This pump mounts horizontal & can face any direction that allows the hose connections to connect. Pump needs at least 6HP to handle PSI. Pump head CANNOT be flipped, but pump can be mounted in different directions. Thermal relief valve comes installed. This is a sealed unit, no oil maintenance required. Brass outlet tube MUST be removed if quick-connect is being used. Tips are 0° (red), 15° (yellow), 25° (green), 40° (white) & Soap (black) nozzles with 3/8" Quick Connect (Cold water use ONLY)
In some cases, original pumps have rounder bases, this pump WILL still work, but the engine area around the shaft will not be completely covered. This will NOT affect the performance of the pump or cause any damage to the shaft. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Multicolor
Item Weight : 14.9 Pounds
Global Trade Identification Number : 00197111336835
