About This

• Pressure Washer Pump & Spray Kit for AR SRMW24G28EZSX Briggs & Stratton 202274GS

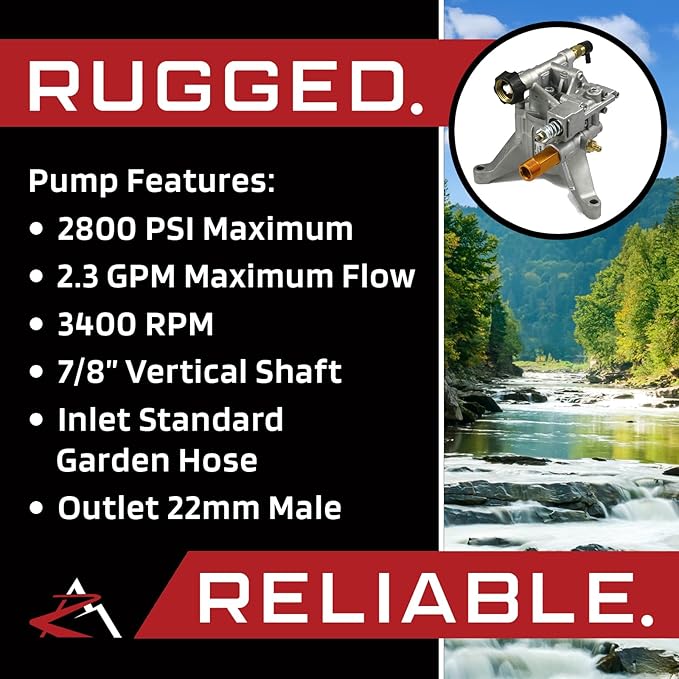

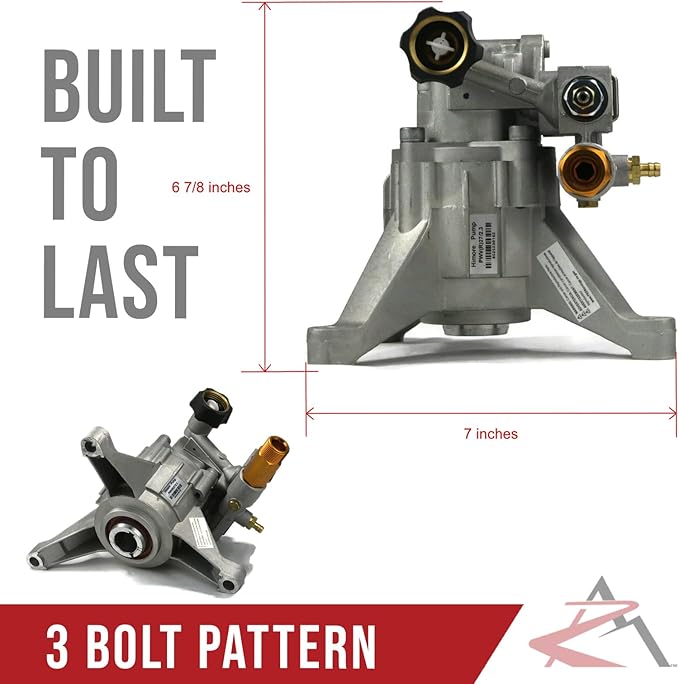

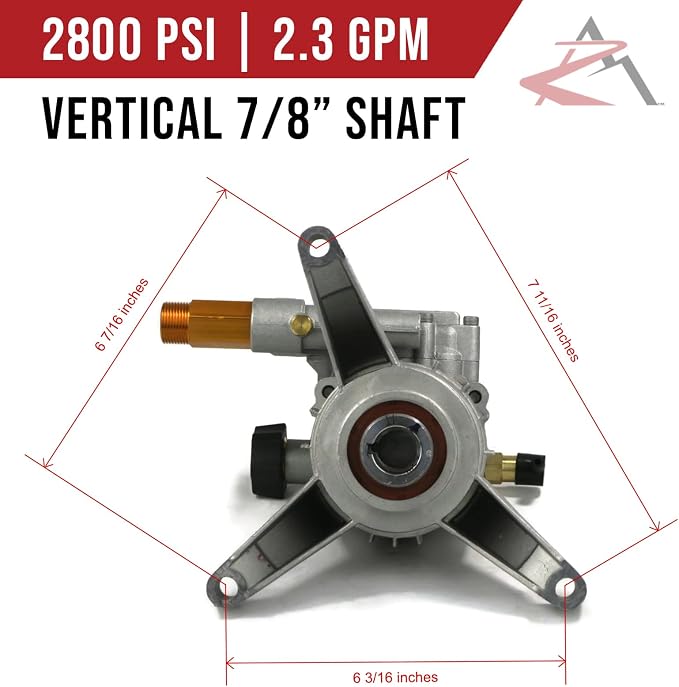

• Specs - Pump - Max PSI: 2800. Max GPM: 2.3. Max RPM: 3400. Shaft: 7/8". 3 Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Max Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Hose - Length: 35'. End Types: M22 Female, Threaded. Diameter: 1/4" (6mm). Wand - Male Pipe Thread Inlet: M22. Female Quick-Connect Outlet: 1/4". Spray Gun - Inlet: M22 male. Outlet: M22 female. Refer to images for more information

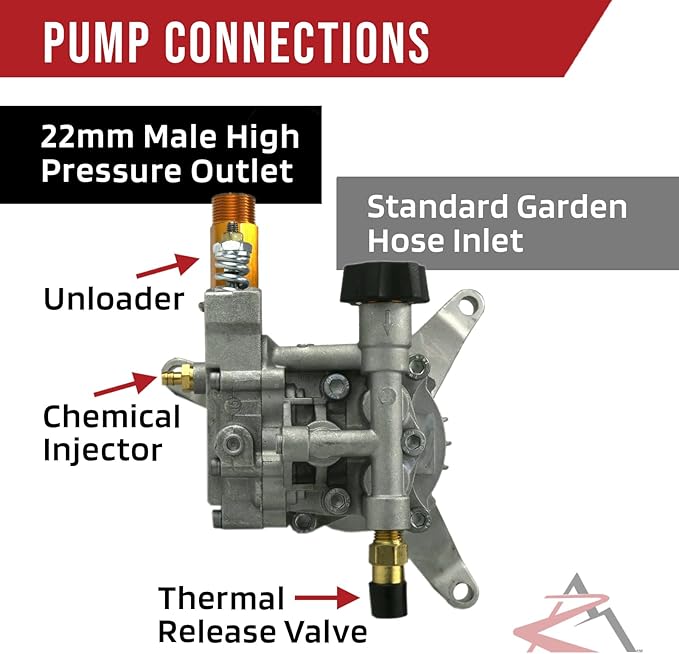

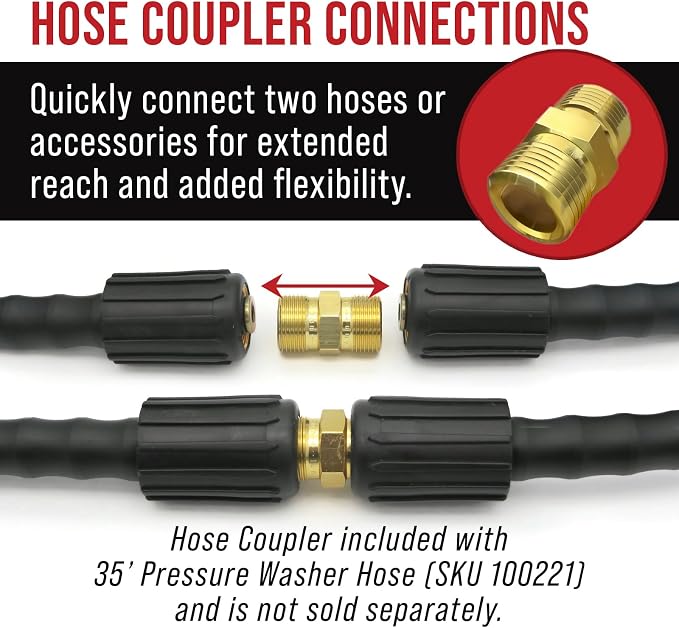

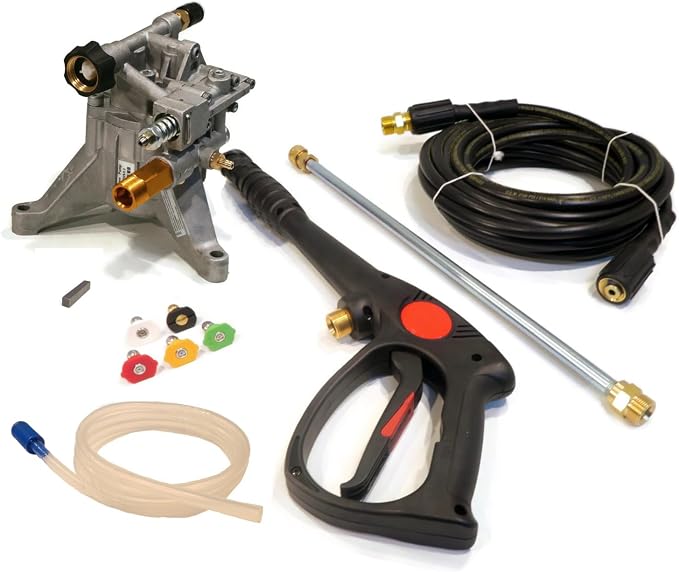

• Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, Outlet Tube, Hose, Keyway, (1) 35' Pressure Washer Hose, (1) Spray Gun, (1) 18" Extension Wand, (5) Spray Nozzle Tips; comes as shown in the first image
• This pump may require 1/2" spacers & longer bolts for install (spacers & longer bolts are NOT included). Common bolt sizes: Two - 5/16" 18 x 2 1/2", One - 5/16" 18 x 3 1/2". Spacers are used if pump arm(s) hit the engine or can't reach the under side of frame such as the engine has a longer shaft. Spacers prevent the pump legs from breaking from stress. Sprayer tips are 0° (red), 15° (yellow), 25° (green), 40° (white) & Soap (black) nozzles with 3/8" Quick Connect (Cold water use ONLY)

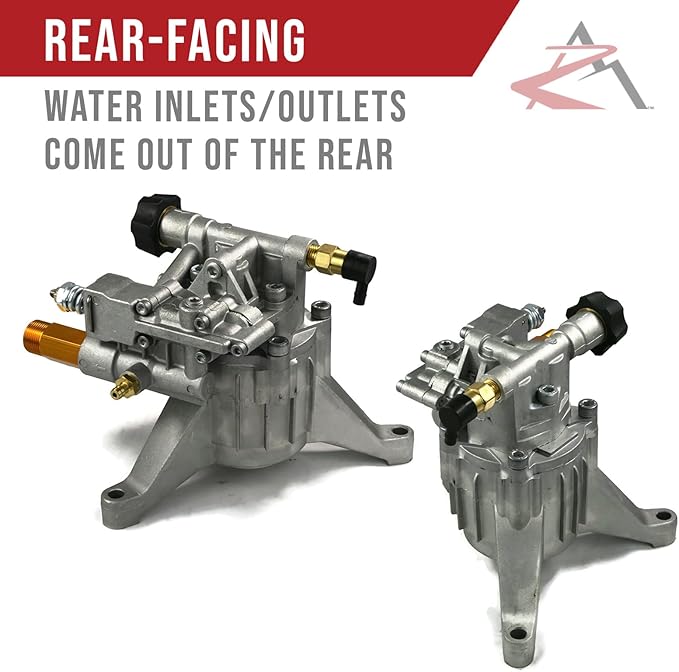

• Pump mounts vertical & is rear facing (water inlets/outlets come out of the rear of the engine). Pump head can be flipped. Thermal relief valve comes installed. This is a sealed unit, no oil maintenance required. Brass outlet tube MUST be removed if quick-connect is being used. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury

Overview

• Brand : The ROP Shop
• Power Source : Mechanical
• Color : Multicolor
• Item Weight : 13.56 Pounds
• Maximum Flow Rate : 2.3 Gallons Per Minute
• Global Trade Identification Number : 00197111337238
• UPC : 197111337238
• Number of Items : 1
