• POWER PRESSURE WASHER WATER PUMP & SPRAY KIT Sears Craftsman 580.752531 020465-0

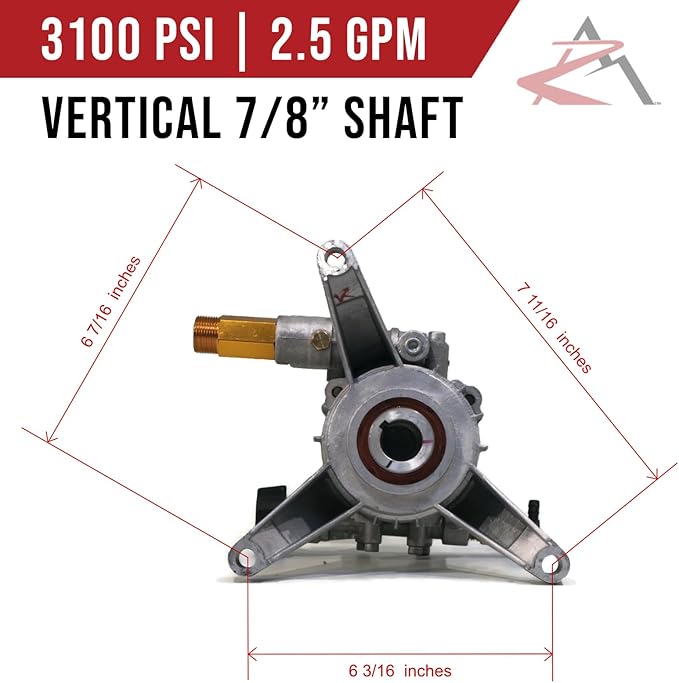

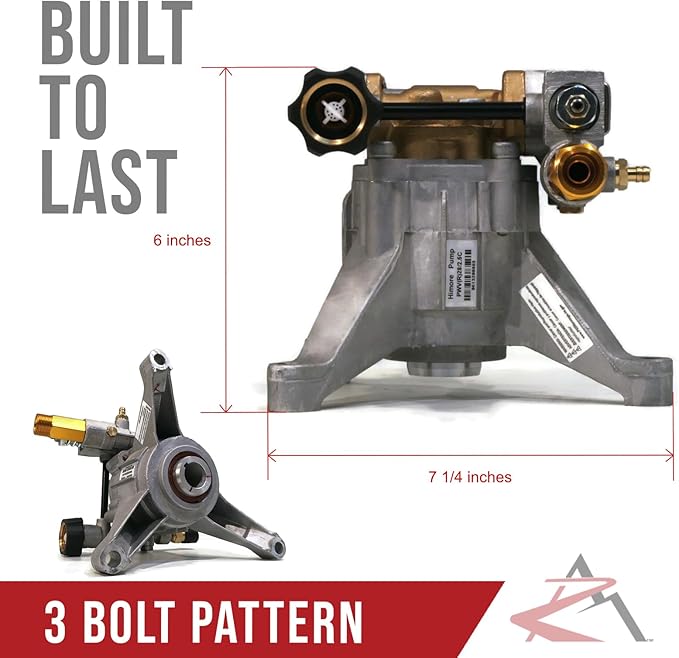

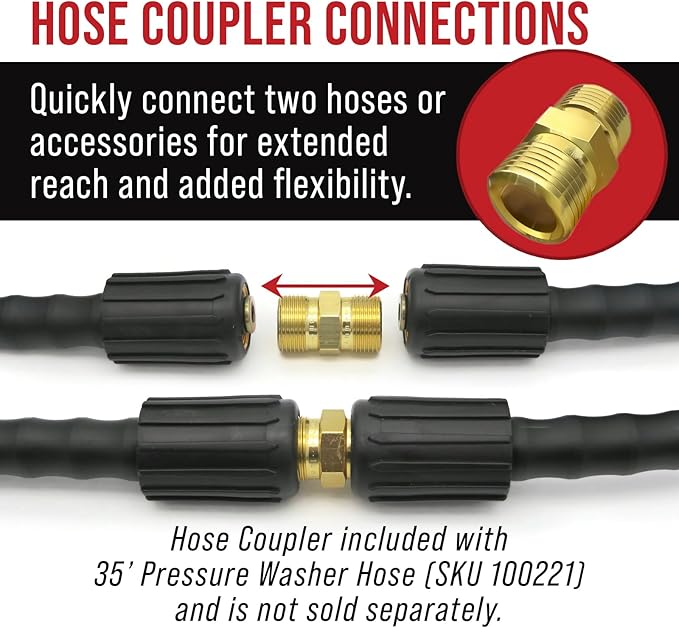

• Specs - Pump - Max PSI: 3100. Max Flow: 2.5 GPM. Max RPM: 3400. Shaft Diameter: 7/8". 3 Bolt Pattern: 7 11/16" x 6 3/16" x 6 7/16" & 4" Center to Each Outer Hole. Max Temp: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Hose - Length: 35'. End Types: M22 Female, Threaded. Diameter: 1/4" (6mm). Spray Gun - Inlet: M22 male. Outlet: M22 female. Wand - Male Pipe Thread Inlet: M22. Female Quick-Connect Outlet: 1/4". Refer to images for more information

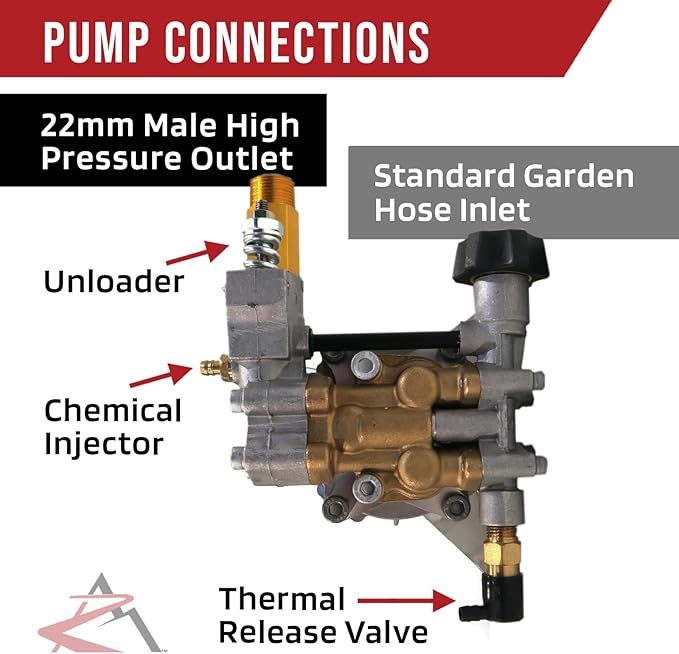

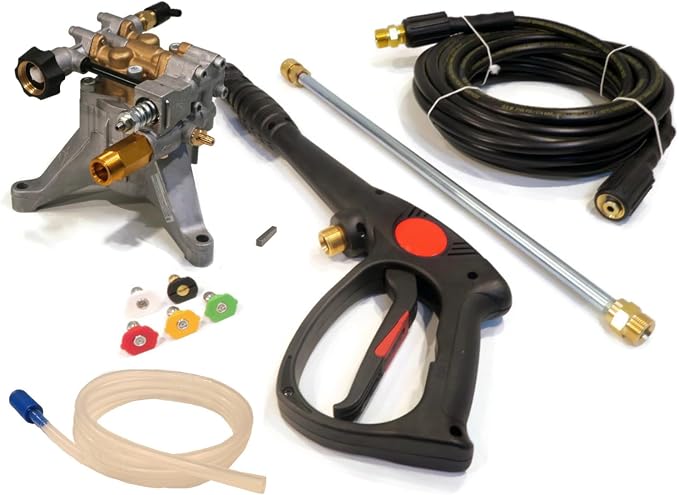

• Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, & Outlet Tube, Hose, Keyway, (1) 35' Pressure Washer Hose, (1) Spray Gun, (1) 18" Extension Wand, (5) Spray Nozzle Tips; comes as shown in the first image

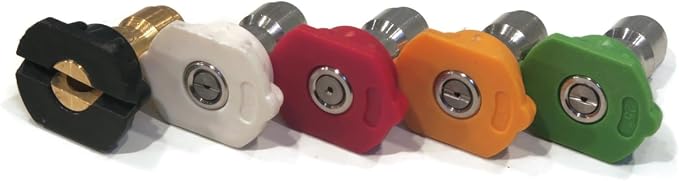

• This pump may require 1/2" spacers when installed, depending on motor configuration. Spacers are used in the case that the pump arm(s) hits the engine or can't reach the under side of frame such as the engine has a longer shaft. If spacers aren't used when installing, the pump legs will break from stress (spacers & longer bolts are NOT included). Sprayer tips are 0° (red), 15° (yellow), 25° (green), 40° (white) & Soap (black) nozzles with 3/8" Quick-Connects (Cold water use ONLY)

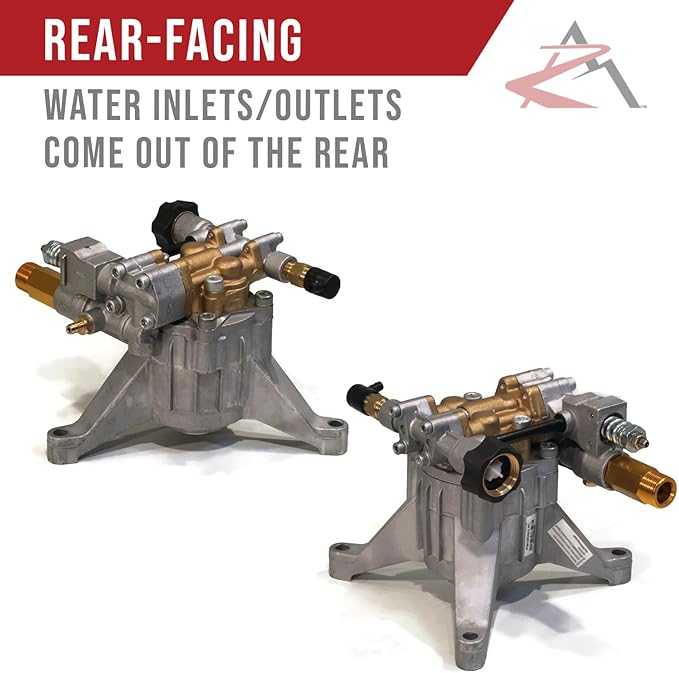

• This pump mounts vertical & is a rear facing (water inlets/outlets come out of the rear of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Relief valve comes installed. This is a sealed unit, no oil care required. Brass outlet tube MUST be removed if quick-connect is being used. Please note it is not recommended to run any pressure washer pump above its max PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury

Overview

• Brand : The ROP Shop
• Power Source : Mechanical
• Color : Multicolor
• Item Weight : 14.7 Pounds
• Maximum Flow Rate : 2.5 Gallons Per Minute
• Global Trade Identification Number : 00197111853219
• UPC : 197111853219
• Number of Items : 1
