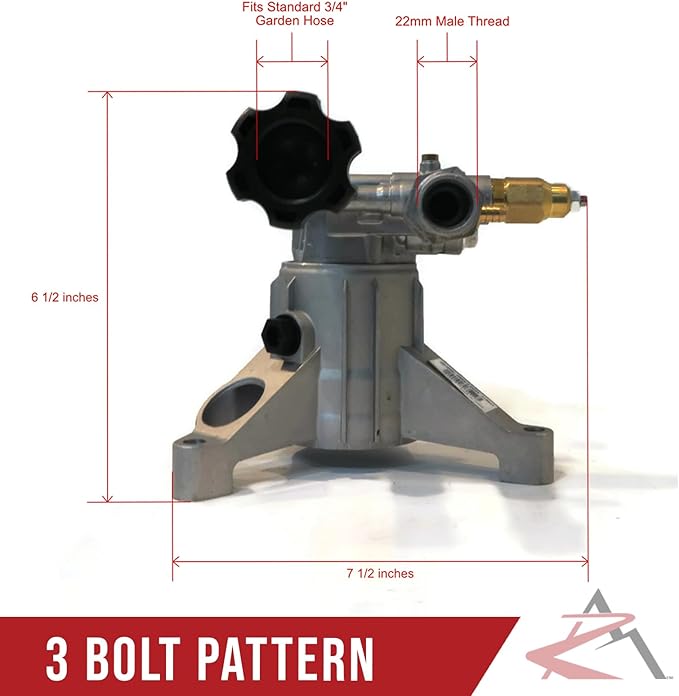

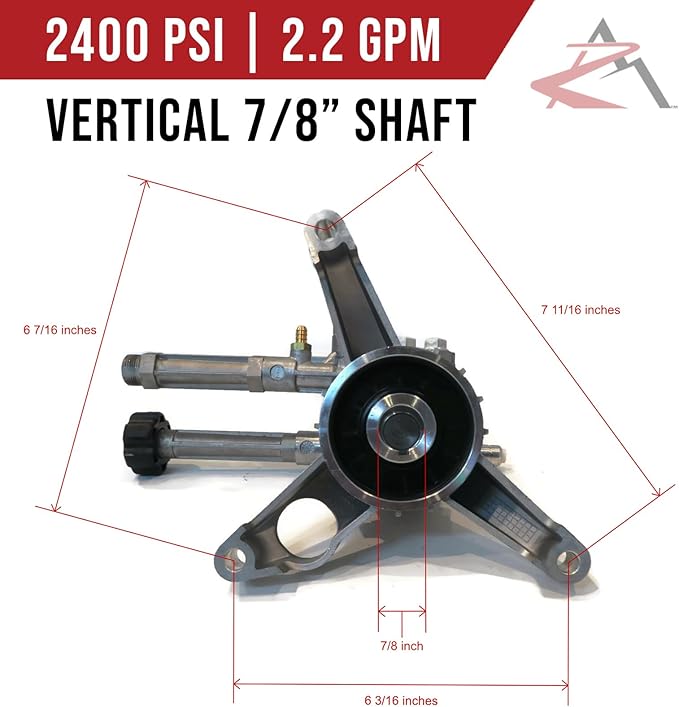

Specs - Max Pressure: 2400 PSI. Max Flow: 2.2 GPM. Max Pump Speed: 3400 RPM. Shaft Size: 7/8". Shaft Version: D. Shaft Type: Hollow. 3 Bolt Pattern. Max Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 1.4M. Oil Capacity: 2.2oz. Refer to images for more information

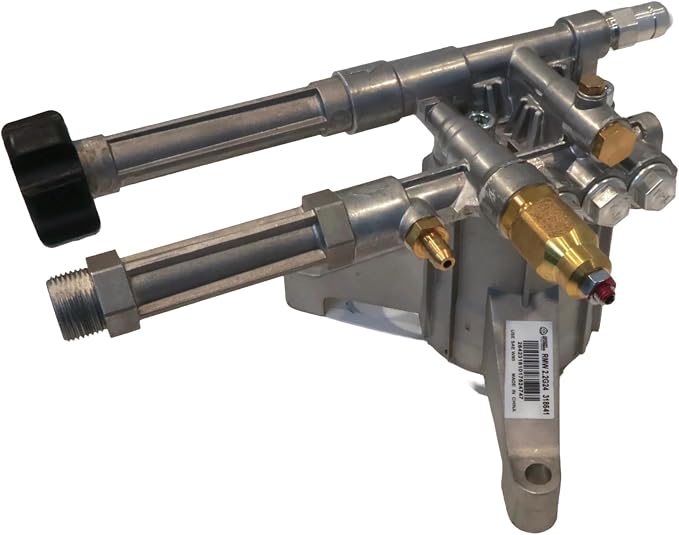

Includes - (1) Vertical Pressure Washer Pump, RMW22G24-EZ-SX, (1) Thermal Release Valve, (1) Chemical Injector (both come installed); comes as shown in the first image (does NOT include engine shaft key or bolts)

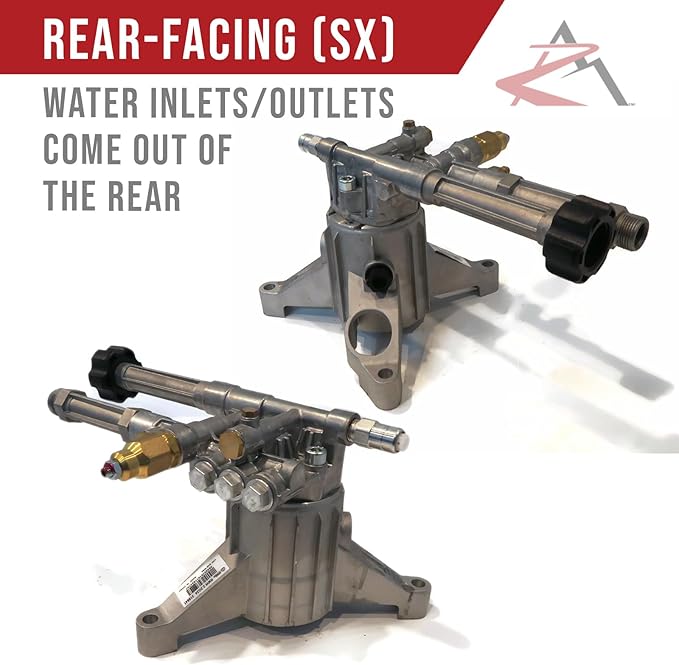

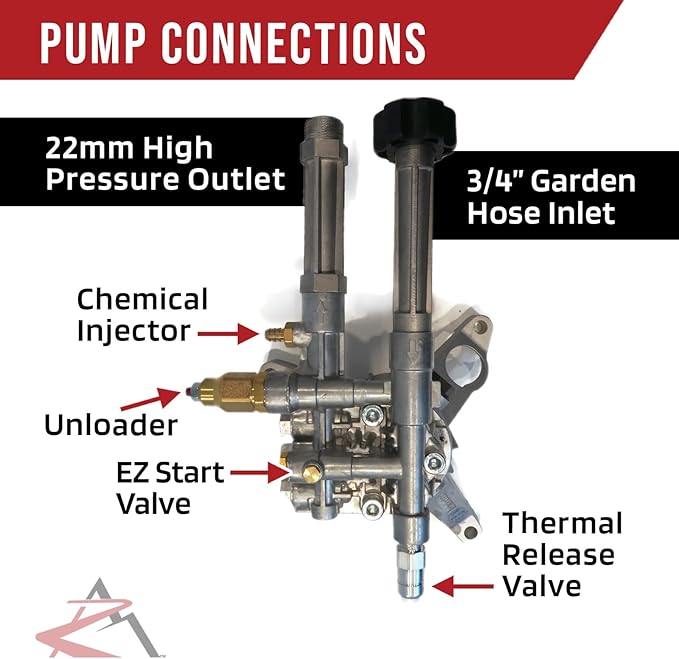

This pump is for vertical gas engine driven units. In some instances, the pump may need to be removed to change engine oil. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines in 4-7 HP. The pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve. This is an EZ-SX Rear-Facing or Left-Handed SX Pump, which has the outlet facing the back
Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Gray
Item Weight : 7 Pounds
Global Trade Identification Number : 00197111498519
