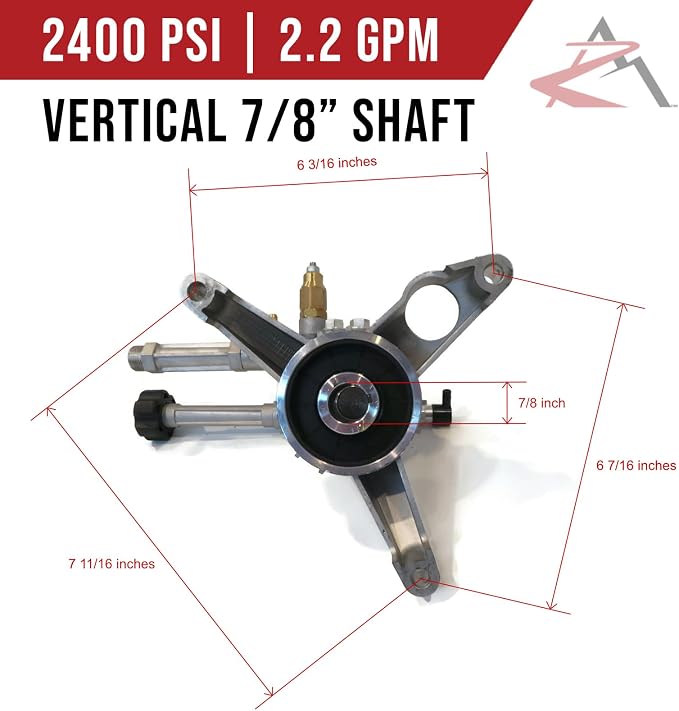

Specs - Max Pressure: 2400 PSI. Max Flow: 2.2 GPM. Max Pump Speed: 3400 RPM. Shaft Size: 7/8". Max Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 14mm. Oil Capacity: 2.2oz. Refer to images for more information
Includes - (1) Vertical Pressure Washer Pump, RMW22G24-EZ, (1) Thermal Release Valve, (1) Chemical Injector (both come installed); comes as shown in the first image (does NOT include engine shaft key or bolts)

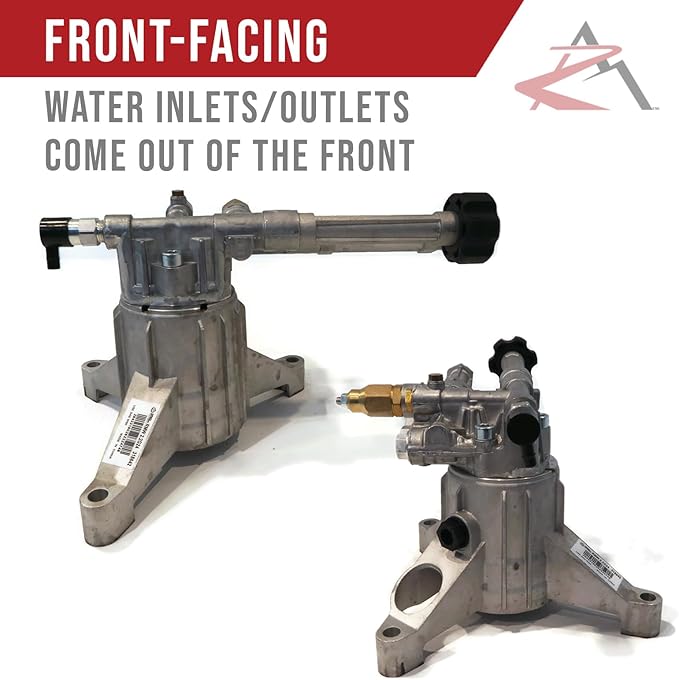

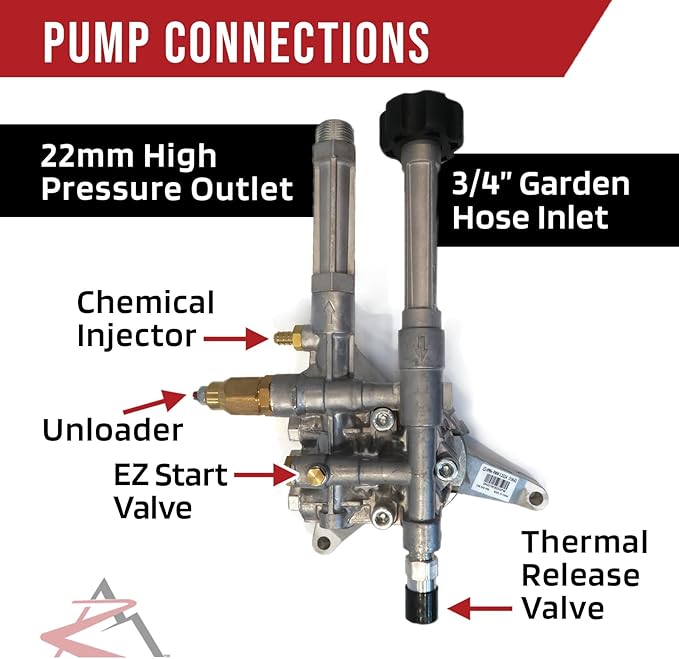

This pump is for vertical gas-powered engine units. In some instances, the pump may need to be removed to change engine oil. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines in 4-7 HP. The pump includes a built-in pressure control valve, downstream chemical injection system, EZ start valve and thermal relief valve. This is an EZ Front-Facing or Right-Handed (Non SX) Pump, which has the outlet facing the front. Do NOT run above max PSI rating
Please confirm your OEM part number, along with your unit's model, spec, type/code, and serial number to ensure this is the correct part for your unit. This part may replace multiple OEM numbers, so verifying every detail is important for a proper fit. If you're unsure or have questions about compatibility, feel free to contact us!
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Gray
Item Weight : 7 Pounds
Global Trade Identification Number : 00197111525758
