AR 3/4" Shaft Gas Pressure Washer Pump for Campbell Hausfeld PW222000LE, PW2220

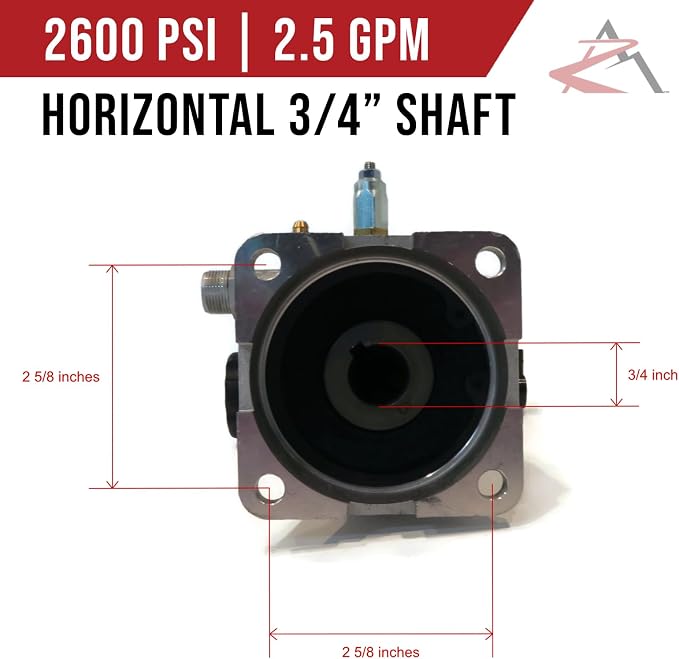

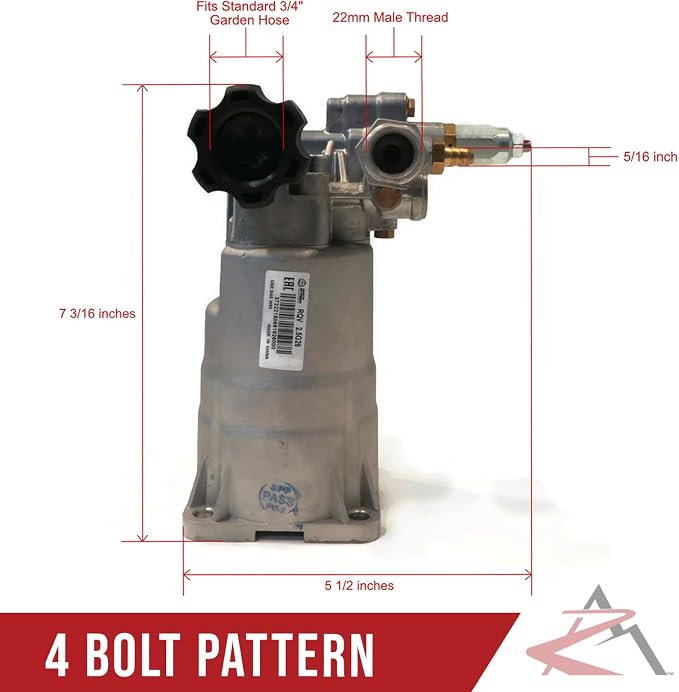

Specs - Max Pressure: 2600 PSI. Max Flow: 2.5 GPM. Shaft Size: 3/4". 4 Bolt Pattern: 2 5/8" from center to center for outer holes. Max Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 14mm. Oil Capacity: 2.29oz. Refer to images for more information

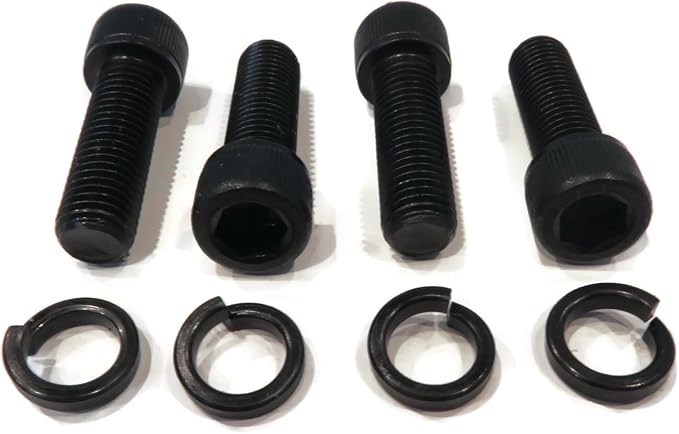

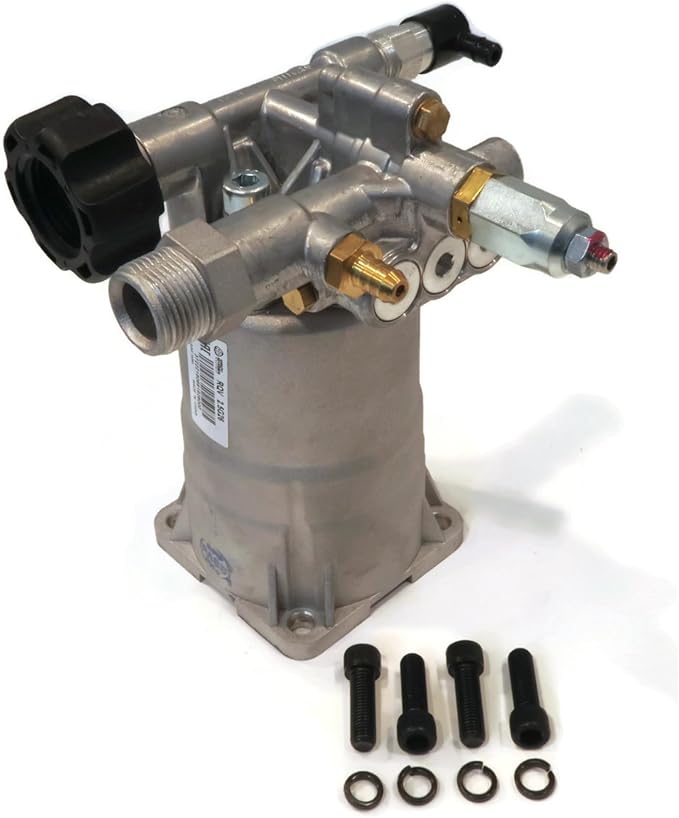

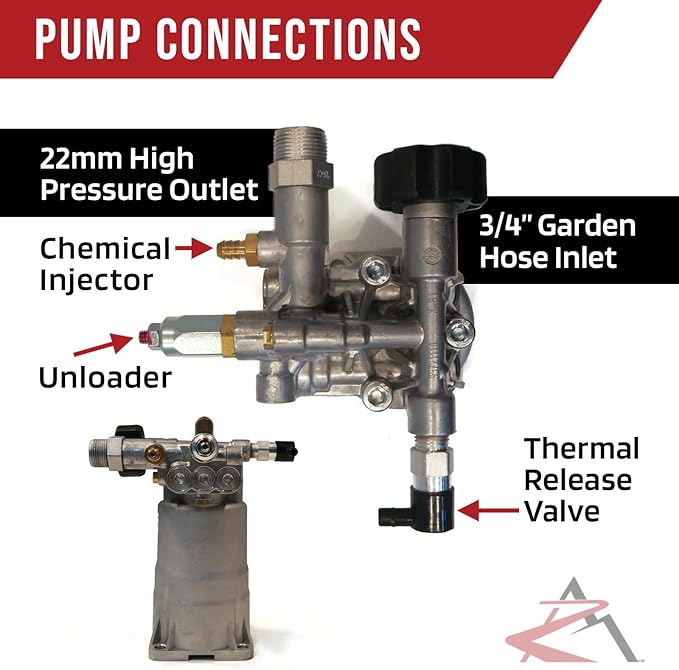

Includes - (1) Pressure Washer Pump, (1) Thermal Release Valve, (1) Chemical Injector (both come installed), (4) Bolts, (4) Lock Washers; comes as shown in the first image
This pump is for horizontal gas engine driven units. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 3/4" diameter shaft horizontal gas engines with at least 4.5 - 5HP. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Please confirm your OEM part number, along with your unit's model, spec, type/code, and serial number to ensure this is the correct part for your unit. This part may replace multiple OEM numbers, so verifying every detail is important for a proper fit. If you're unsure or have questions about compatibility, feel free to contact us!
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Gray
Item Weight : 5.4 Pounds
Maximum Flow Rate : 2.5 Gallons Per Minute
Global Trade Identification Number : 00197111383037
