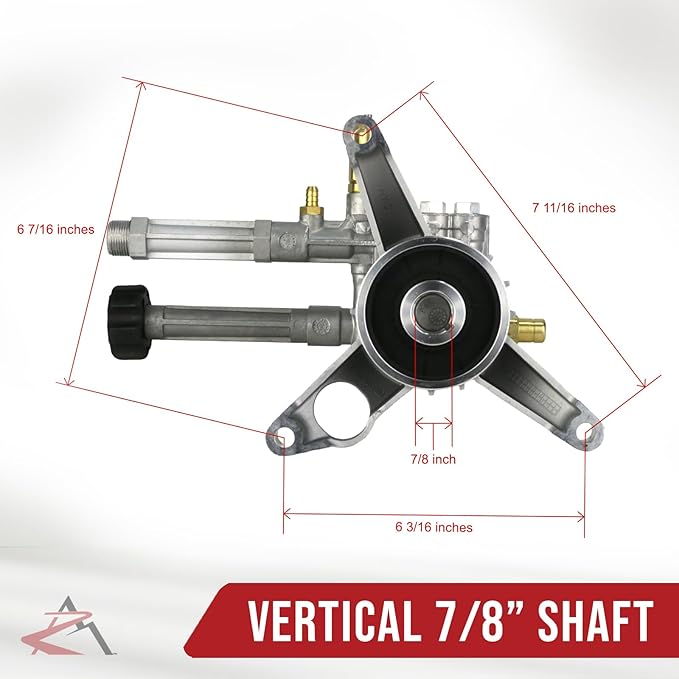

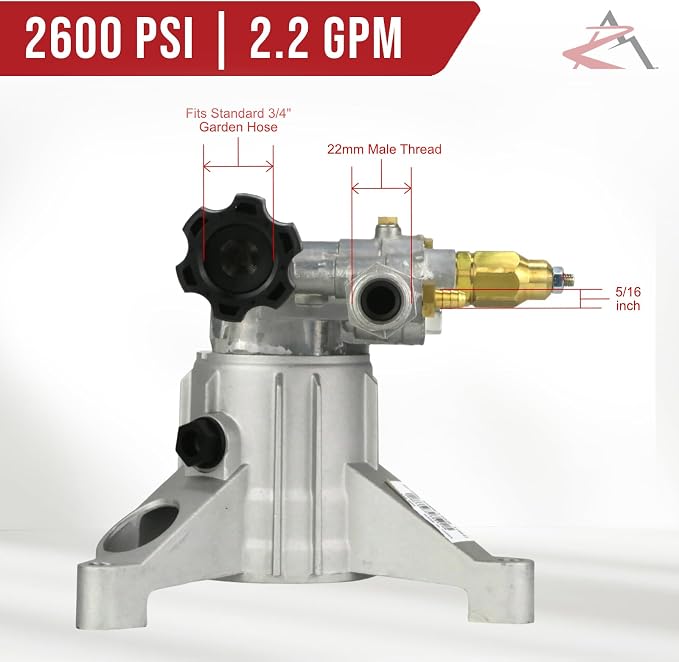

Specs - Pump - Max PSI: 2600. Max GPM: 2.2. Shaft Size: 7/8". 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” from center to center for each bolt hole. Max Temp: 140° F. Inlet: 3/4". Outlet: 22mm x 14mm; Hose - Length: 35'. End Types: M22 Female, Threaded. Diameter: 1/4" (6mm); Spray Gun - Inlet: M22 M. Outlet: M22 F; Wand - Male Pipe Thread Inlet: M22. Female Quick-Connect: 1/4"; Nozzles - Size: 3.0. Spray Angle: 0° to 40°. Quick-Connect: 3/8". Refer to images for more information

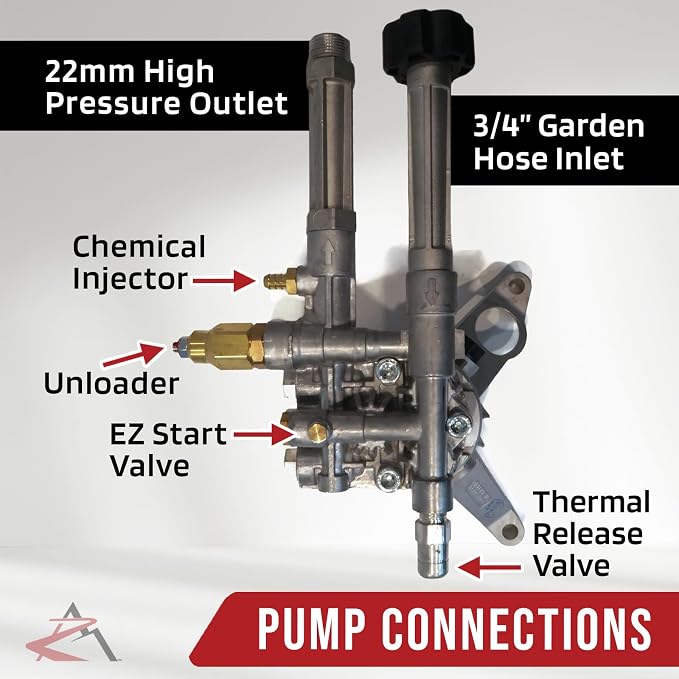

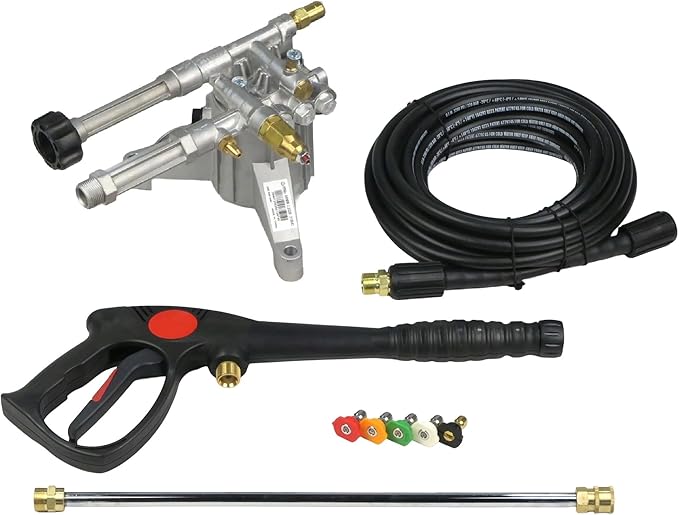

Includes - (1) Vertical Pressure Washer Pump with Thermal Release Valve & Chemical Injector (both come installed)(does NOT include engine shaft key or bolts), (1) Hose, (1) Spray Gun, (1) Extension Wand, (1) Red 0° Tip, (1) Yellow 15° Tip, (1) Green 25° Tip, (1) White 40° Tip, (1) Black 50° Soap Tip; comes as shown in the first image
This spray kit is for cold water use ONLY. Quick-Connects for fast swapping of standard accessories. Hose Features - High quality components. 3:1 burst to operating pressure. Smooth thermoplastic cover. Textile braided reinforcement. Seamless inner tube

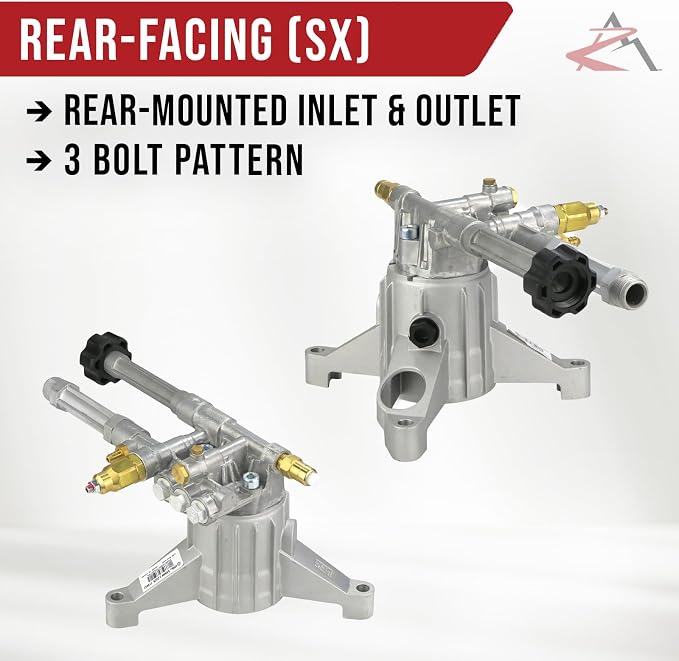

This pump is for vertical gas engine driven units. It mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines with at least 5HP. This is an EZ-SX Rear-Facing (Left-Handed) SX Pump, designed with the outlet positioned at the back. Do NOT run above max PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Multicolor
Item Weight : 9.1 Pounds
Global Trade Identification Number : 00197111163028
