3000 PSI Horizontal Brass Head Power Pressure Washer Water Pump, 2.5 GPM, 3/4" Shaft with Keyway, Chemical Hose & Quick Connect

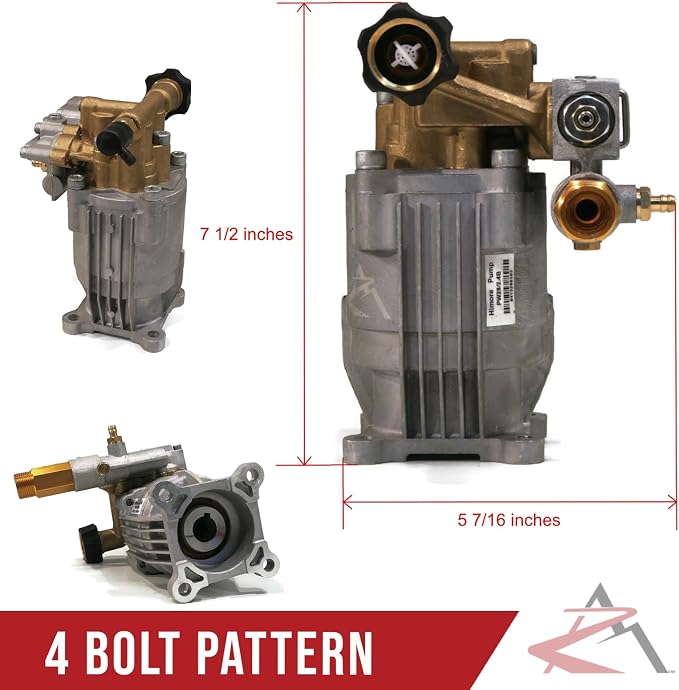

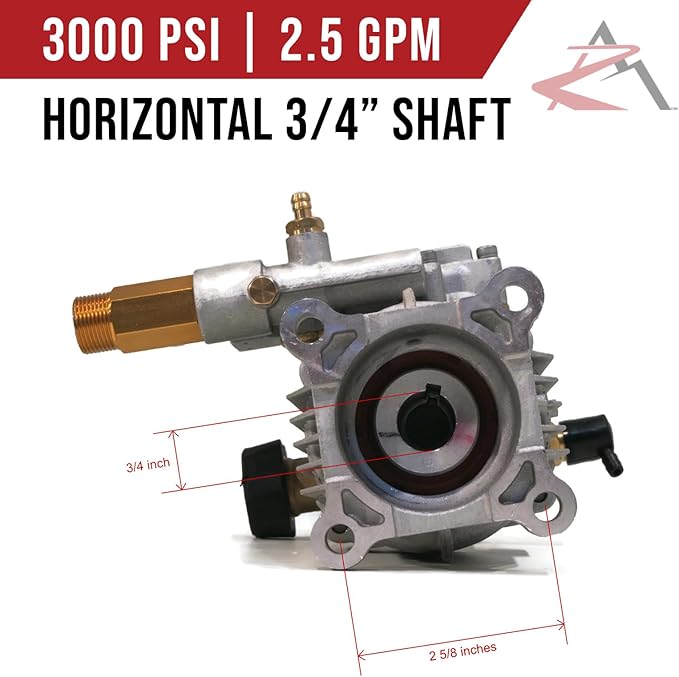

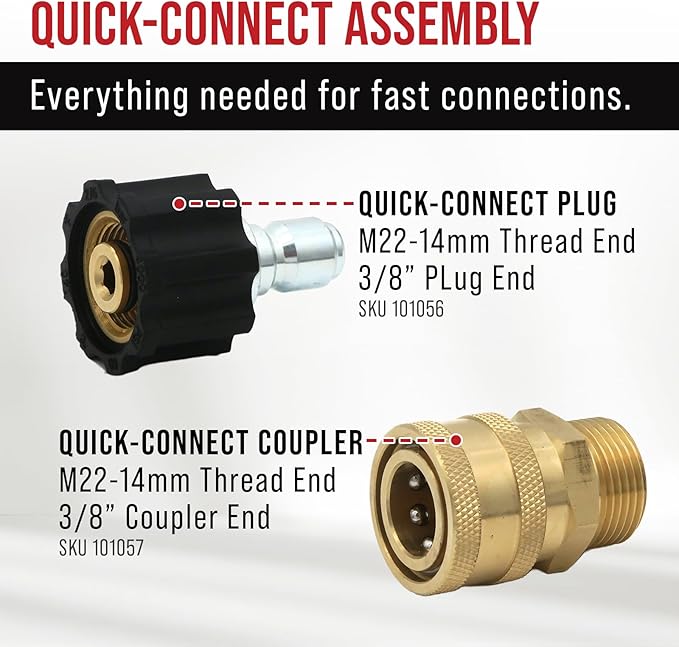

Specs - Pump - Max Pressure: 3000 PSI. Max Flow: 2.5 GPM. Max Pump Speed: 3450 RPM. Shaft Diameter: 3/4" Shaft. 4 Bolt Pattern: 2 5/8" Center to Center between Outer Holes. Max Water Temp: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Coupler - Male Pipe Thread End: M22 (14mm). Female Coupler End: 3/8". Plug - Female Pipe Thread End: M22 (14mm). Plug End: 3/8". Max PSI: 4000. Max Temp: 140° F (60° C). Refer to images for more information

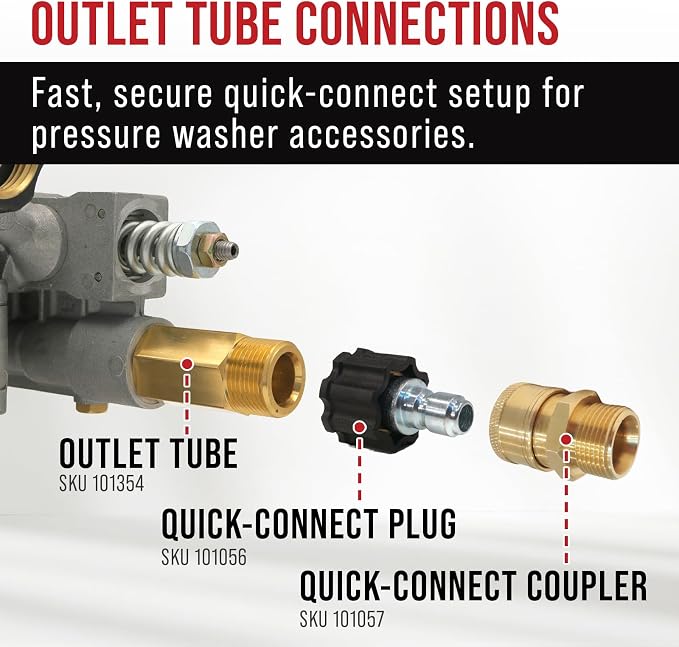

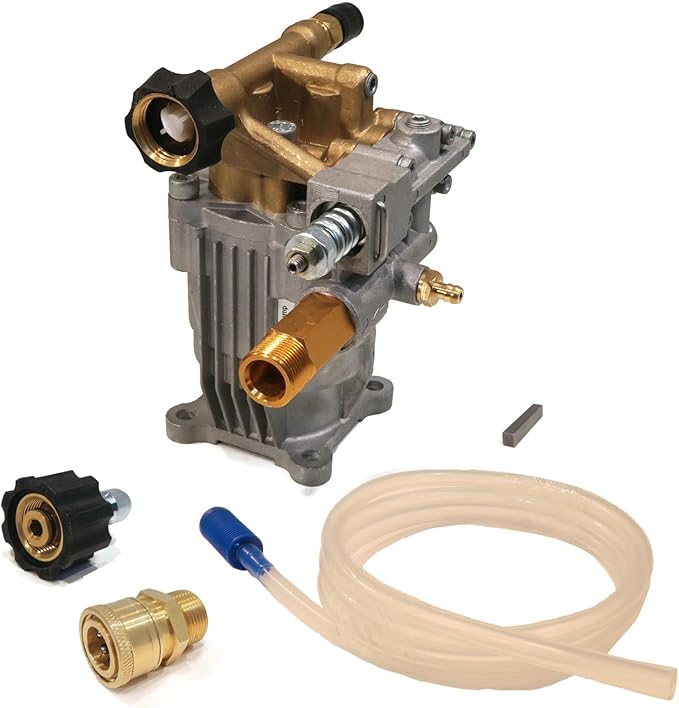

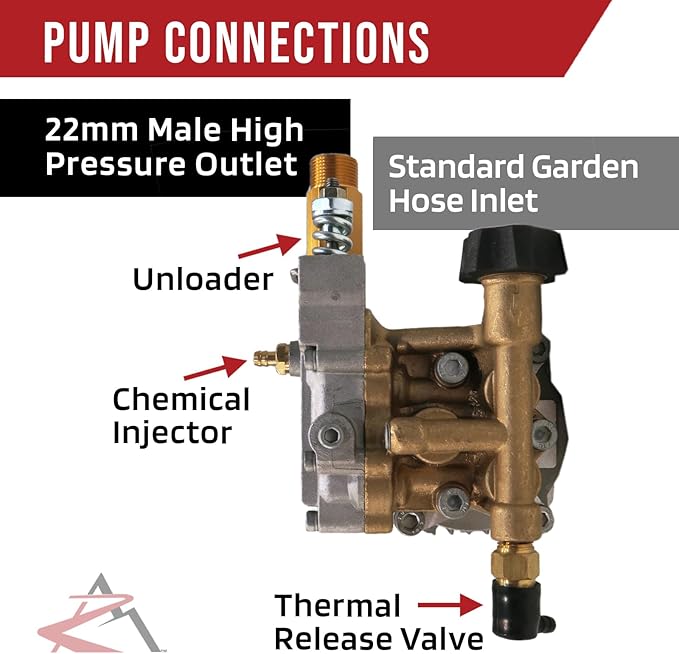

Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve, & Outlet Tube, (1) Keyway, (1) Hose, (1) Quick-Connect Plug, (1) Quick-Connect Coupler; comes as shown in the first image

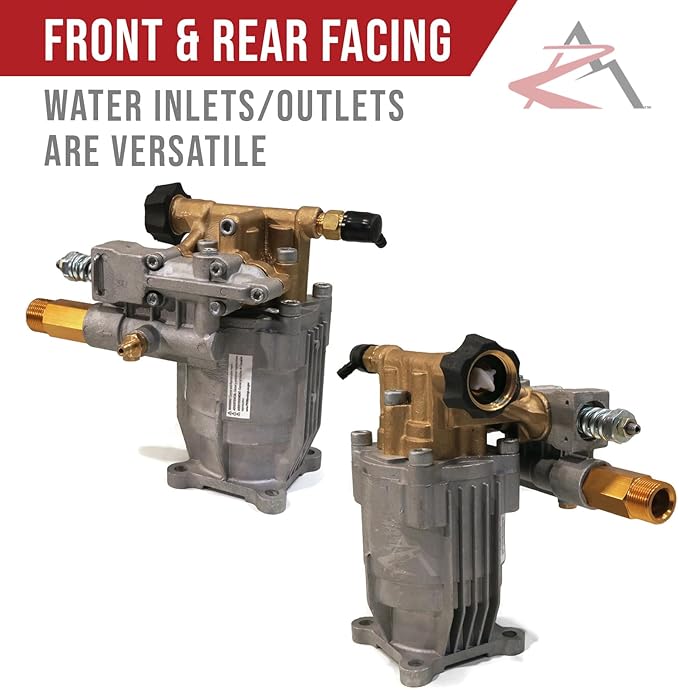

This pump mounts horizontal and can face any direction that allows the hose connections to be accessible. Pump needs at least 6HP to handle PSI. Pump head CANNOT be flipped, but pump can be mounted in different directions. Thermal relief valve comes pre-installed. This is a sealed unit, no oil maintenance required. Brass outlet tube MUST be removed if quick-connect is being used
In some cases, original pumps have rounder bases, this pump WILL still work, but the engine area around the shaft will not be completely covered. This will NOT affect the performance of the pump or cause any damage to the shaft. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Overview
Brand : The ROP Shop
Power Source : Mechanical
Color : Gray
Item Weight : 8.19 Pounds
Global Trade Identification Number : 00197111253804
